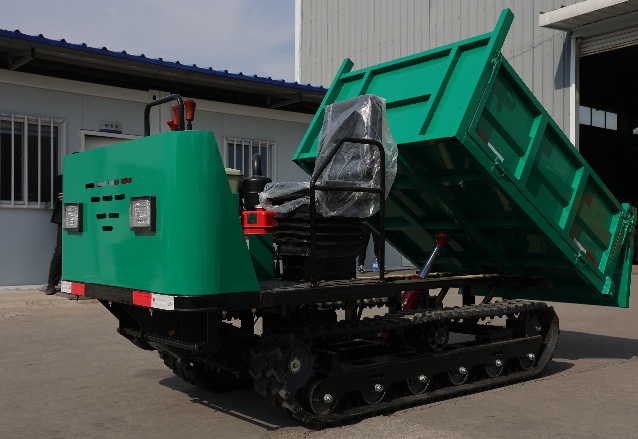

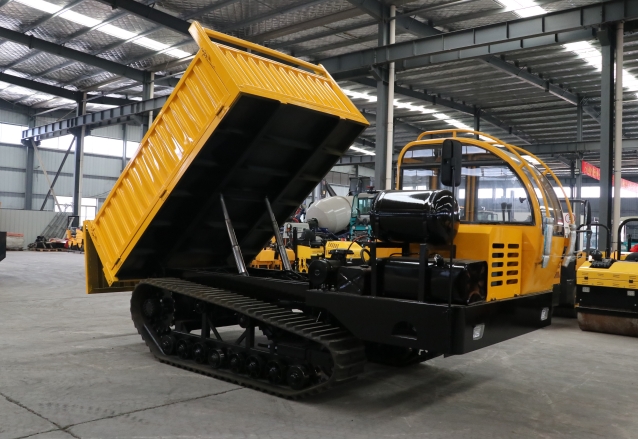

Crawler tipper-Track Dumper

1.Powerful and drag gable diesel engine

2.Simple structure and convenient operation

3.Adapt to complex road conditions

4.Easy maintaining


1.Thickened chassis hydraulic lifting

2.Not afraid of climbing various terrains

3.Flexible steering

4.Engineering track with super strong load capacity

Technical Data

Model UPTIMOS-2000 UPTIMOS-6000 UPTIMOS-10000
Engine Model ZS1105 QC4102 TURBO WC4105
Output-HP 18 69 120
Track Type-mm 320*72*58 400*90*56 450*90*82
Track material Engineering Rubber type
Curb weight 1000KG 2200KG 4500KG
Loading capacity 2 tons 6 tons 10 tons
Overall size-m 2.85*1.25*0.5 3.7*1.65*2.3 4.6*2.2*2.3
Cargo box size-m 1.6*1.25*0.5 2.2*1.6*0.65 3.1*2.2*0.7
Ground clearance-mm 400 500 1000
Grounding length-mm 1600mm 1880mm 2300mm
Shifts 3F+1R 6F+2R 5F+1R
Cooling system Water cooling
Max. Speed 10km/h 18km/h 30km/h
Dumper type Single cylinder Double cylinders Double cylinders
Can fix crane Yes
Parking angle 35度 35度 35度
Max. climbing angle 45度 45度 45度
Chassis width 1100mm 1600mm 2000mm
Gearbox model Guli 18 Guli 29 Wanliyang 545
Drive axle model / / DF153
Dragging tyres Unilateral 6 groups 10 groups 10 groups
Dragging tyres diameter / / 200
Cabin / / Single person cabin
